Long motor AGM Torque, Class 480, brushless, Dualsky

Long motor AGM Torque, Class 480, brushless, Dualsky. Long brushless AGM (Advanced Gearbox Motor) motor from Dualsky. Suitable for M16/M4/MP5/G3/P90 etc. The 480 series AGM motor is designed specifically for AEG guns and offers top performance and unique features that are unmatched in the airsoft industry. This brushless motor stands out with its outrunner design, which greatly facilitates any disassembly. The motor casing itself has an ingenious design with a built-in centrifugal fan that actively cools the motor during operation. This improves its overall performance even under long-term and high loads.

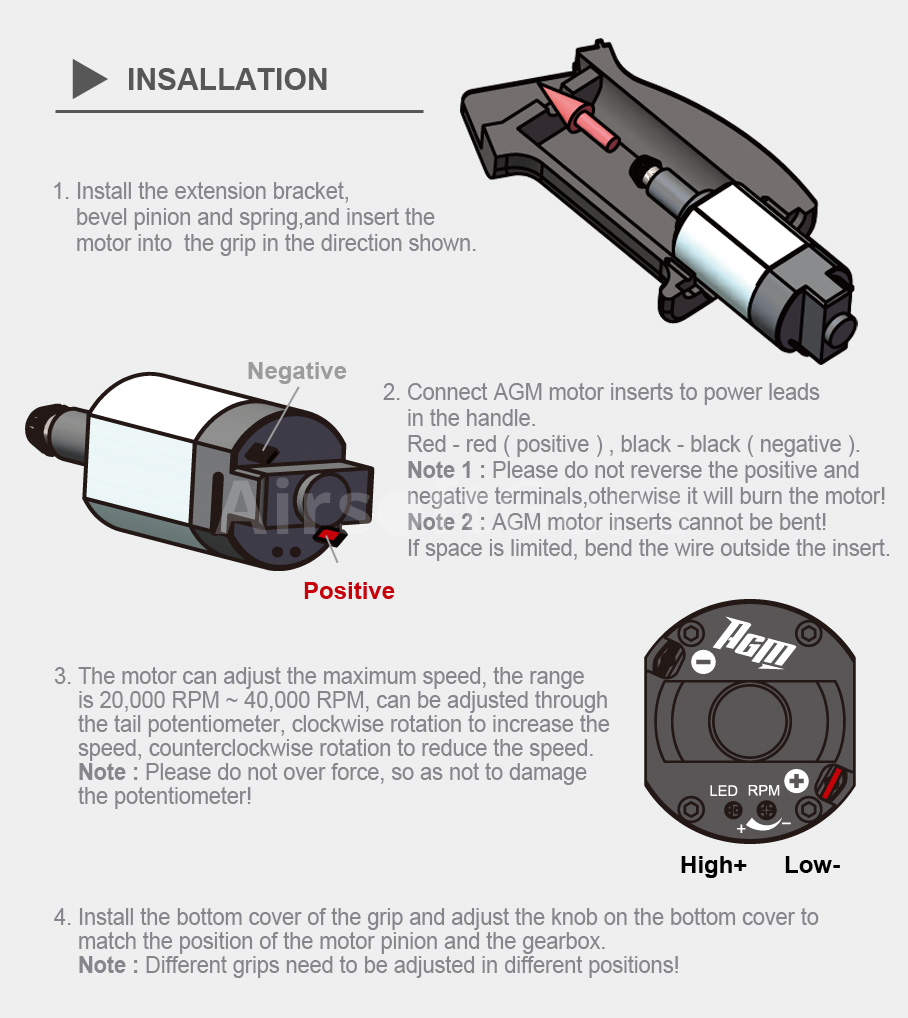

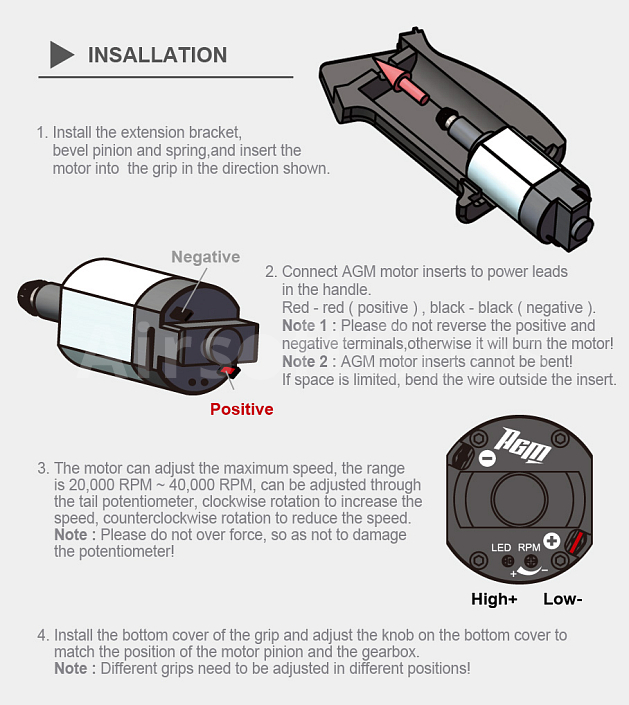

Another undeniable advantage is the potentiometer for adjusting the speed. Thanks to it, users can easily adjust the speed between 20,000 and 40,000 revolutions per minute (RPM) with a screwdriver. This solution is especially suitable when a reduction in cadence is required due to the use of springs of different stiffness, when combined with a powerful battery, when there are problems with feeding magazines, etc. The motor axis is reinforced in this case to achieve overall higher durability. In its center, the shaft has a diameter of 4 mm, which is more than the usual 3 mm for standard motors. The package includes a durable D-type pinion and a screwdriver for regulating RPM.

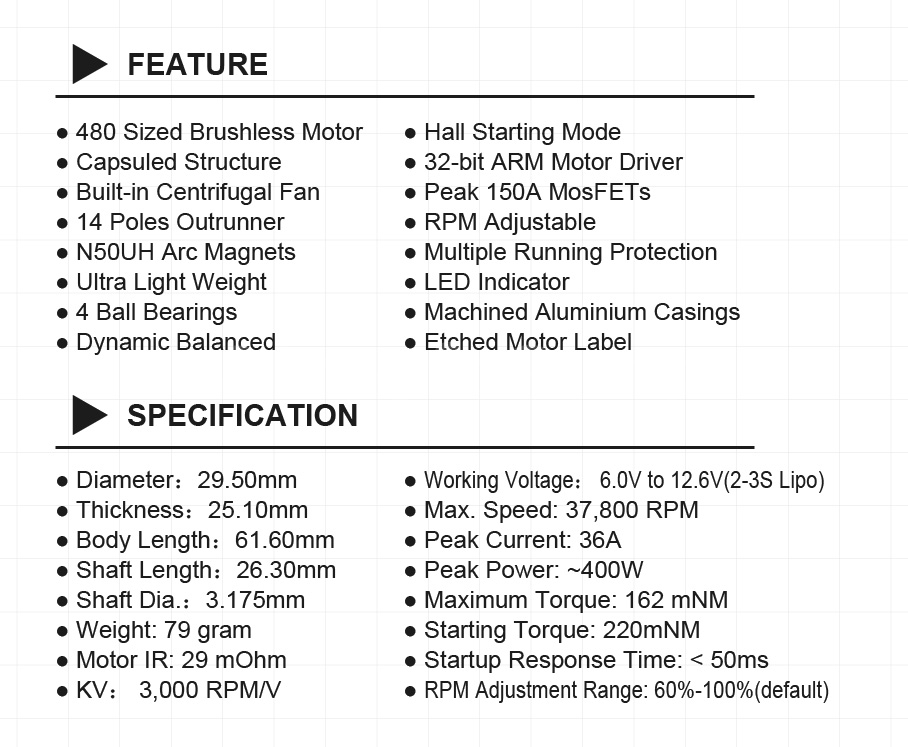

Main features:
480 size brushless motor
Capsuled structure
Built-in centrifugal fan
14 pole outrunner design
N50UH Arc magnets
Ultra light weight
4 ball bearings
Dynamic balanced
Hall starting mode
32-bit ARM motor driver
MOSFET for peaks up to 150A
RPM adjustable
Multiple running protection
LED indicator
Machined aluminium casings
Etched motor label

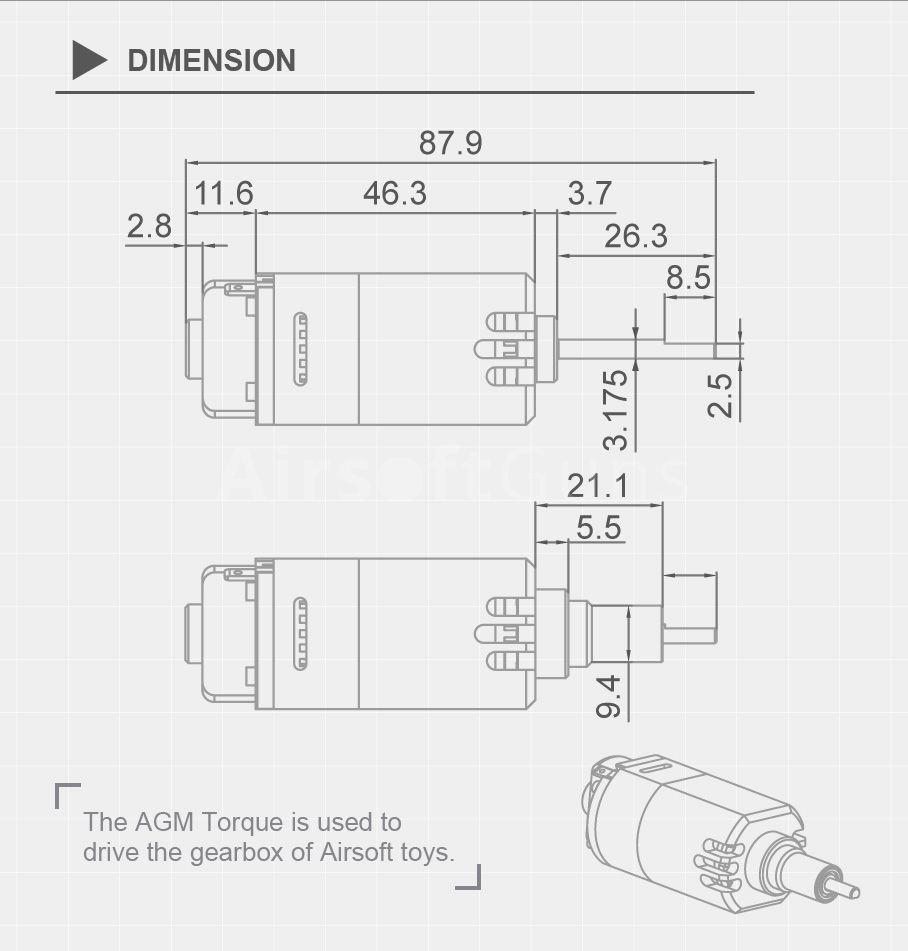

Specification:
Diameter: 29.50mm
Thickness: 25.10mm
Body length: 61.60mm
Shaft length: 26.30mm
Shaft diameter: 3.175mm
Weight: 79 gram
Motor internal resistance: 29 mOhm
KV: 3,000 RPM/V
Working voltage: 6.0V to 12.6V (2-3S LiPo)
Maximum speed: 37,800 RPM
Peak current: 36A
Peak power: ~400W
Maximum torque: 162 mNm
Starting torque: 220 mNm
Startup response time: < 50 ms
RPM ​​adjustment range: 60-100% (default)
